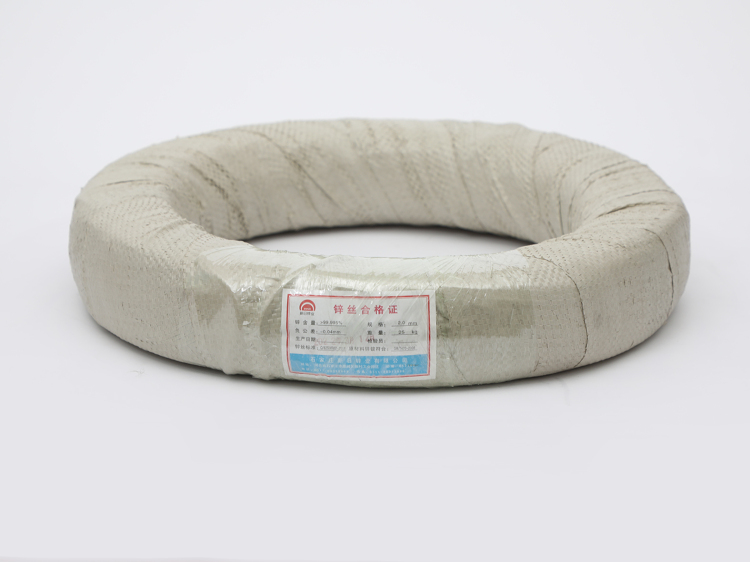

Product name: ZINC WIRE (pure zinc wire coating zinc wire)
Product specification: 0.8mm----15mm
Product name
diameter
package
Zinc content
use
Shaft mounted zinc wire
Φ 1.3 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Suitable for ductile cast pipe, power capacitor, power tower, iron tower, container, derrick, bridge, gate, tunnel frame, metal support, large steel structure and other surface thermal spraying zinc corrosion protection industry.
Φ 1.6 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Φ 2.0 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Φ 2.3 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Φ 2.8 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Φ 3.0 mm
25kg/ bale; 15-20kg/ axle mounting; 50-200/ barrel
99.9953 or higher
Φ 3.175 mm
250kg/ barrel
99.9953 or higher
Φ 4.0 mm
200kg/ barrel
99.9953 or higher
Product purity: zinc content is greater than 99.995%
Product mechanical properties:
Product packaging: 25kg/ bundle 15kg-20kg/shaft 50kg-250kg/barrel
Product description: Zinc wire appearance is smooth, bright and fine, no broken wire, no oil and burr, no scratches and scars, moderate softness and hardness, no stuck gun phenomenon in the process of use.
Ingredients:
0# distilled zinc ingot produced by Huludao Zinc Industry Co., LTD., with zinc ingot content ≥99.995%. Raw materials strictly comply with the national standard GB/470-2008
Production:
The company has XJ-650T extruder and five sets of domestic advanced automatic flow casting resistance furnace, continuous drawing-drawing production equipment, and multiple sets of circulating water tank, digital precision wire winding machine, automatic wire falling machine, baling machine and other equipment.
Detection:
From the raw material (zinc ingot) to the strip process no other components enter, no contact with other metals. Use DF-100 direct reading spectrometer, computer eddy current detector (eddy current detection series), plasma inductively coupled atomic emission spectroscopy and other high-end detection instruments. From the raw material - out of the strip - big pull - middle pull - water tank - packaging - storage each process layer control, layer detection. Do not let go of any small details, so that our product performance is long-term stable. Ensure that the zinc wire content of each batch is above 99.995%, and the SGS environmental test results meet the requirements of the EU RoHS Directive 2002/95/EC and subsequent amendments.
Quality:
Advanced equipment, leading technology, strict testing control, has formed zinc wire as the leading products, annual output of zinc wire more than 11,000 tons of production enterprises, has established a long-term strategic partnership with a number of state-owned enterprises, central enterprises, listed enterprises, foreign enterprises. And a large number of exports to East Asia (Japan, South Korea), Southeast Asia, the Middle East, North America, South America, Eastern Europe, Western Europe and other more than a dozen countries and regions, with foreign companies to establish good trade relations, enjoy a high reputation in the domestic and international markets.
Product features:
1. The size and shape of the spray are not affected. It can be sprayed on the whole surface or on a large limited surface, which is a convenient and economical method when the local surface of a large component requires coating.
2. The parent material does not change. Due to the low heating temperature of the parent material during spraying construction, the workpiece deformation is small.
3. The coating thickness can be varied in a wide range, and the thickness formed by spraying can be from several microns to several millimeters.
4. Spray molding. Thermal spraying technology can not only form a coating on the surface of the material, but also can be used to make mechanical parts solid, that is, spray molded products.
Thermal spraying zinc has excellent corrosion resistance, in different atmospheric environments, different water quality, spraying thickness is only 0.08-0.4mm, it can ensure the durability of the component reaches 20-40 years or more, is currently the most ideal corrosion resistance material.
Transportation and storage:
It is prohibited to use packaging and transportation with acid, alkali, salt and other corrosive zinc, and should be stored in dry, ventilated, non-corrosive materials in the warehouse, strictly prevent rain wet.
