PT-400AAluminum spraying machine

Technical parameters;

Input power supply: 3-phase AC380V 50HZ

Output current: DC400A

Input power: 18.5KVA

Load rate: 60%

Input current: AC22A

Insulation class: F class

Output no-load voltage: DC20-46V

Overall dimensions (mm) : (L * W * H) 760*500*930

Voltage regulation series: 10 levels in total

Weight: 120 kg

Power characteristics: flat characteristics

Compressed air pressure: ≥0.6MPa

Product Introduction:

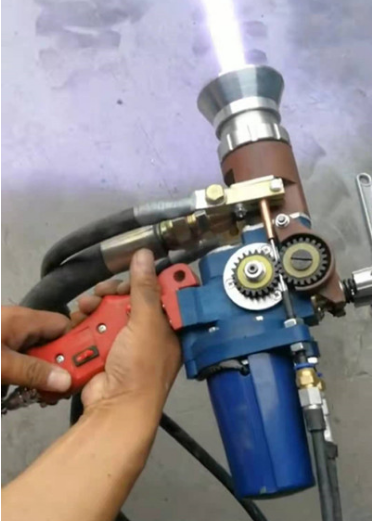

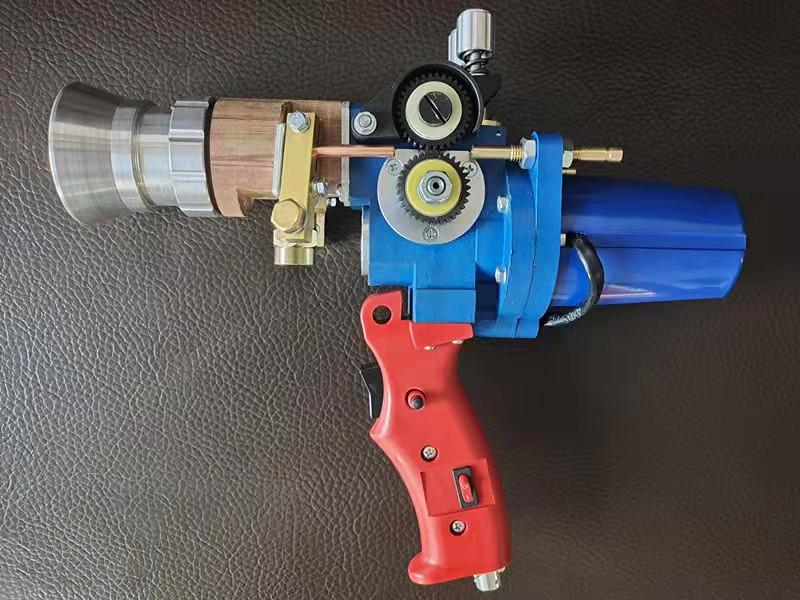

High power secondary atomization arc zinc spraying machine, aluminum spraying machine is a wire feed, power supply, gas in one, the equipment is simple to operate, safe, low failure rate. The spray coating is well combined with the substrate, the positive and negative direct current output of the power supply is stably and reliably transmitted to the two metal wires in the spray gun (the current can reach 400A, the voltage is 22-48V), the conductivity of each conductive part is good, and the spray particles are uniform and small after atomization. Spraying arc stability, no arc break, explosion and other phenomena.

Performance characteristics:

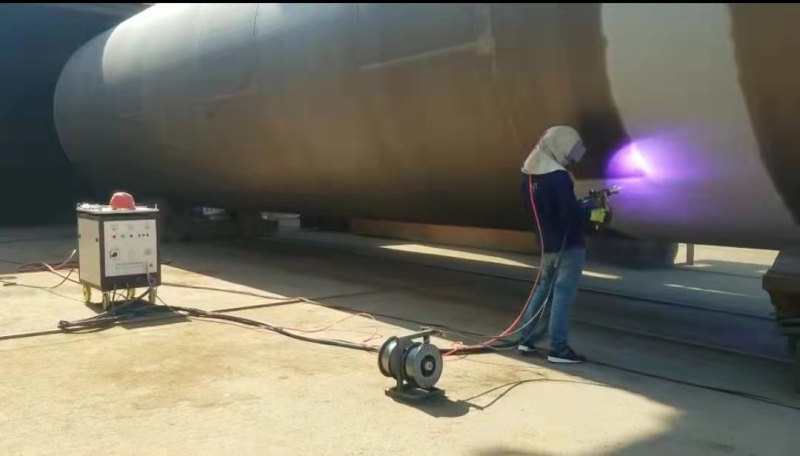

Arc spraying equipment is mainly used in ships, Bridges, water conservancy and hydropower projects, wind power construction, petrochemical tank, pipeline anticorrosion, mining machinery manufacturing, petroleum, petrochemical metallurgy, port construction, light industry, aircraft manufacturing, rolling stock, instrumentation, precision manufacturing, electronics industry, ductile iron pipe, and other fields of steel structure anticorrosion and wear or processing errors of the machine surface repair system Capacitor conductive coating, etc. Main spraying materials: zinc, aluminum, copper, carbon steel, stainless steel wire, babbitt, lead and its alloy materials. According to the production requirements of different working conditions, the spray gun can be fixed on the machine tool to spray regular large workpieces.

Features:

Push and pull

Simple and safe operation

Spray coating quality is good

High spraying efficiency

High density and strong binding force

High efficiency and energy saving
